SFP-1G-BX20D Cisco Compatible, 1000BASE-BX20-D BiDi SFP TX1490nm/RX1310nm 20km DOM LC SMF Fiber Optical Transceiver Module

#151016
62 Sold 3 Reviews 0 Questions
8.00 12.00
PN: SFP-1G-BX20D-T02
Compatible
Cisco
Transceiver Type
SFP-1G-BX20D | 20km, 1550m/1310nm
SFP-1G-BX20U | 20km, 1310m/1550nm
SFP-1G-BX40U | 40km, 1310m/1550nm
SFP-1G-BX40D | 40km, 1550m/1310nm
SFP-1G-BX20U | 20km, 1310nm/1490nm
SFP-1G-BX20D | 20km, 1490nm/1310nm
SFP-1G-BX40U | 40km, 1310nm/1490nm
SFP-1G-BX40D | 40km, 1490nm/1310nm
SFP-1G-BX80U | 80km, 1490nm/1550nm
SFP-1G-BX80D | 80km, 1550nm/1490nm
SFP-1G-BX120U | 120km, 1490nm/1550nm
SFP-1G-BX120D | 120km, 1550nm/1490nm
SFP-1G-BX10D | 10km, 1550m/1310nm
SFP-1G-BX10U | 10km, 1310m/1550nm
SFP-1G-BX10D | 10km, 1490m/1310nm
SFP-1G-BX10U | 10km, 1310m/1490nm
Ship From China
430 in stock
Add to Cart

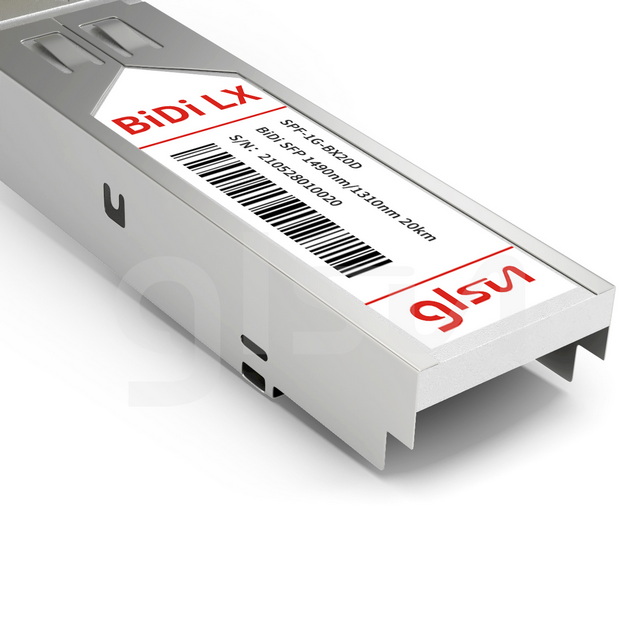

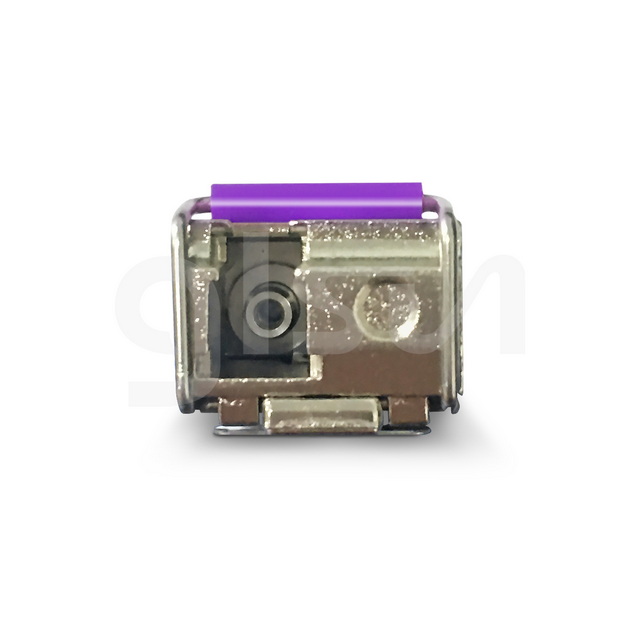

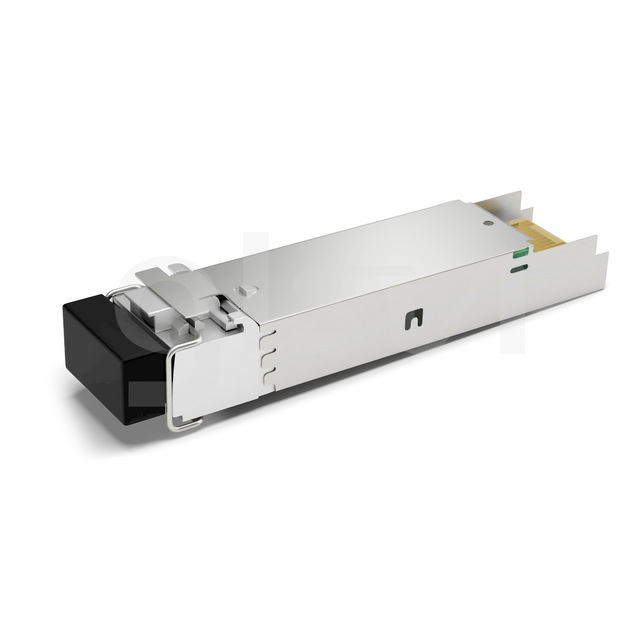

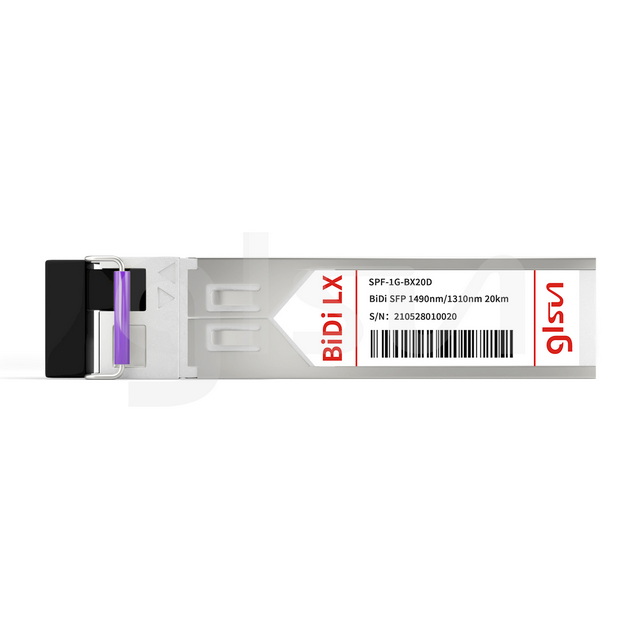

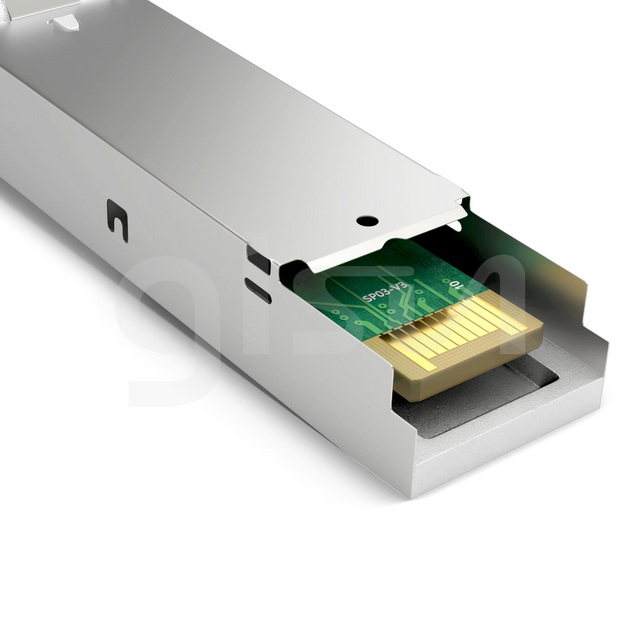

SFP-1G-BX20D TX1490nm/RX1310nm Optical Transceiver Module
SFP-1G-BX20D Cisco Compatible, 1000BASE-BX20-D BiDi SFP TX1490nm/RX1310nm 20km DOM LC SMF Fiber Optical Transceiver Module #151016
62 Sold 3 Reviews 0 Questions
Add to Cart
8.00 12.00

Glsun SFP-1G-BX20D, SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Compatible Cisco Form Factor SFP
Max Data Rate 1.25Gbps Wavelength 1490nm-TX/1310nm-RX
Max Cable Distance 20km Connector Simplex LC
Transmitter Type 1490nm DFB Extinction Ratio 9dB
Media SMF Power Consumption <0.8W
Power Supply Voltage 3.3V Operating Case Temperature 0°C to +70℃ (Commercial); -40°C to +85℃ (Industrial)
Quality Certifications
Quality Testing

Wavelength Testing

Bit Error Rate Testing

Performance Testing

Final Testing

Production Workshop

Download

spf-1g-bx20d-1490nm-1310nm-20km-bidi-optical-transceiver-module-151016.pdf
