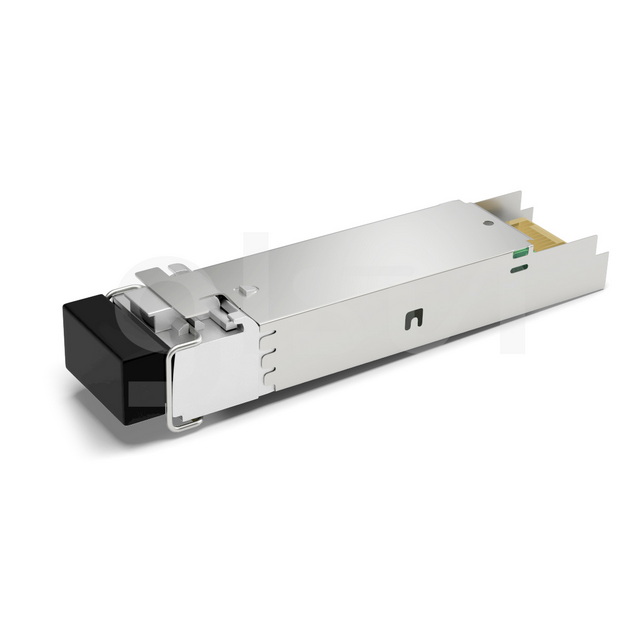

SFP-1G-BX10D Cisco Compatible, 1000BASE-BX BiDi SFP TX1310nm/RX1550nm 10km DDM Simplex LC SMF Fiber Optical Transceiver Module

#151110
0 Sold 0 Reviews 0 Questions
6.00 8.00
PN: SFP-1G-BX10U-31/55-T03
Compatible
Cisco
Transceiver Type
SFP-1G-BX20D | 20km, 1550m/1310nm
SFP-1G-BX20U | 20km, 1310m/1550nm
SFP-1G-BX40U | 40km, 1310m/1550nm
SFP-1G-BX40D | 40km, 1550m/1310nm
SFP-1G-BX20U | 20km, 1310nm/1490nm
SFP-1G-BX20D | 20km, 1490nm/1310nm
SFP-1G-BX40U | 40km, 1310nm/1490nm
SFP-1G-BX40D | 40km, 1490nm/1310nm
SFP-1G-BX80U | 80km, 1490nm/1550nm
SFP-1G-BX80D | 80km, 1550nm/1490nm
SFP-1G-BX120U | 120km, 1490nm/1550nm
SFP-1G-BX120D | 120km, 1550nm/1490nm
SFP-1G-BX10D | 10km, 1550m/1310nm
SFP-1G-BX10U | 10km, 1310m/1550nm
SFP-1G-BX10D | 10km, 1490m/1310nm
SFP-1G-BX10U | 10km, 1310m/1490nm
Ship From China
421 in stock
Add to Cart
1000BASE-BX BiDi SFP TX1310nm/RX1550nm 10km Optical Transceiver Module
SFP-1G-BX10D Cisco Compatible, 1000BASE-BX BiDi SFP TX1310nm/RX1550nm 10km DDM Simplex LC SMF Fiber Optical Transceiver Module #151110
0 Sold 0 Reviews 0 Questions
Add to Cart
6.00 8.00

Glsun SFP-1G-BX10U-31/55, SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 10KM transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Compatible Cisco Form Factor SFP
Max Data Rate 1.25Gbps Wavelength TX1310nm/RX1550nm
Max Cable Distance 20km Connector Simplex LC
Transmitter Type 1310nm FP Extinction Ratio 9dB
Media SMF Power Consumption <0.8W
Power Supply Voltage 3.3V Operating Case Temperature 0°C to +70℃ (C); -40°C to +85℃ (I)
Quality Certifications
Quality Testing

Wavelength Testing

Bit Error Rate Testing

Performance Testing

Final Testing

Production Workshop

Download

sfp-1g-bx10u-1310nm-1550nm-10km-bidi-fiber-optical-module-151110-t03.pdf
