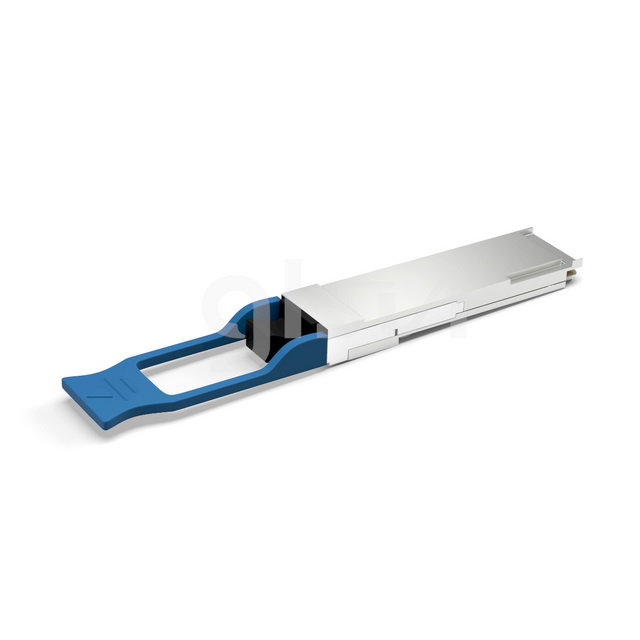

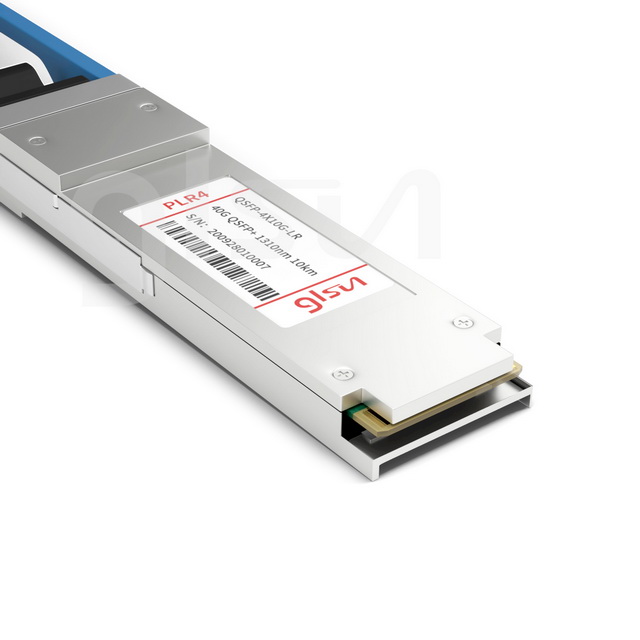

GLsun 40Gb/s QSFP+ PSM 10km Fiber Optical Transceiver is a four-channel, pluggable, parallel, fiber-optic QSFP+ transceiver for InfiniBand QDR/DDR/SDR, 10G/8G/4G/2G fiber channel. and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10.3Gbps operation for an aggregate data rate of 40Gbps 10km using single-mode fiber. These modules are designed to operate over single-mode fiber systems using 1310 nm DFB laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP+ PSM LR4 is one kind of parallel transceiver that provides increased port density and total system cost savings.
Compatible | Cisco | Form Factor | QSFP+ | ||
Max Data Rate | 11.2Gbps | Wavelength | 1310nm | ||
Max Cable Distance | 10km at Single Mode Fiber | Connector | Single MPO | ||
Transmitter Type | DFB Laser Array | Extinction Ratio | 3.5dB | ||
Media | SMF | Power Consumption | <2.5W | ||
Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70°C (Commercial) |
Wavelength Testing
Bit Error Rate Testing
Performance Testing
Final Testing
