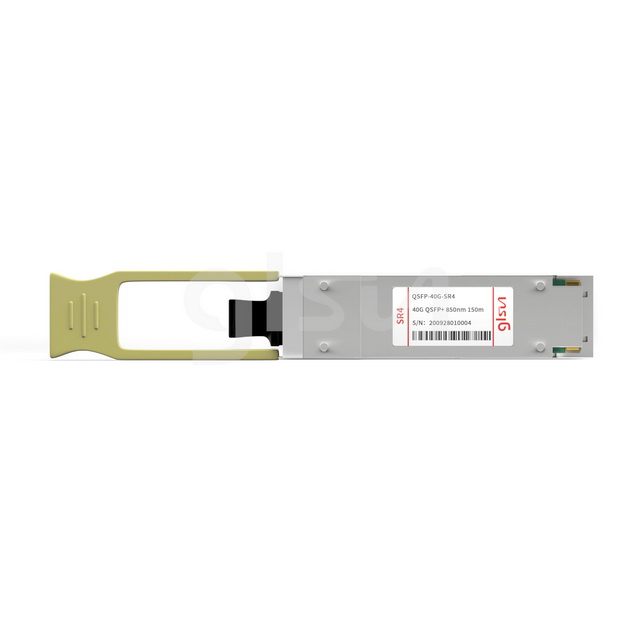

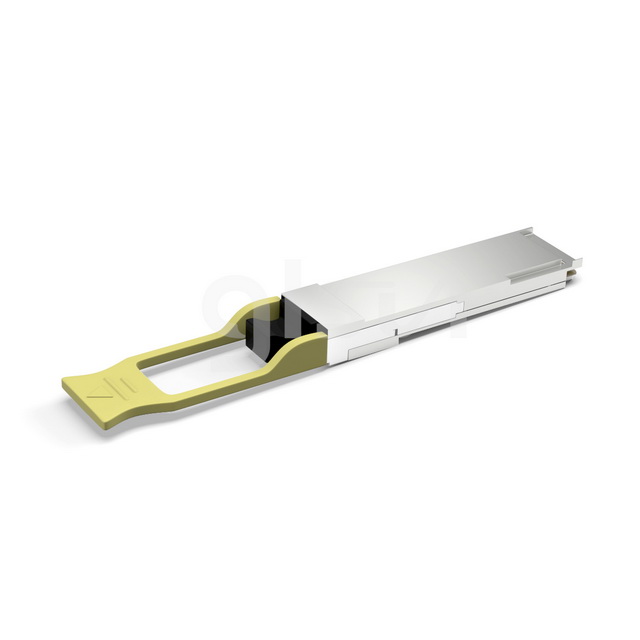

QSFP-40G-SR4 Cisco Compatible, 40GBASE-SR4 QSFP+ 850nm 150m DDM MTP/MPO MMF Fiber Optical Transceiver Module

GLsun QSFP-40G-SR4 transceiver is a four-channel, pluggable, parallel, fiber-optic QSFP+ transceiver for 40-gigabit ethernet applications. This transceiver is a high-performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps bandwidth. One version is each lane can operate at 10.5 Gbps up to 100m using OM3 or 300m using OM4 multimode fiber, another version is each lane can operate at 10.5Gbps up to 300m using OM3 or 400m using OM4 multimode fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses a 12 fiber MTP (MPO) connector. This module incorporates proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Feature
● Hot Pluggable QSFP+ form factor
● Supports 41.25Gb/s aggregate bit rate
● Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
● Maximum link length of 100m on OM3 MMF and 150m on OM4 MMF
● Single MPO-12 receptacle
● Power dissipation: <1.5 W
● Single 3.3V power supply
● 4x10Gb/s 850nm VCSEL and PIN array
● Unretimed XLPPI electrical interface
● Commercial case temperature range of 0°C to 70°C
● I2C management interface
● Class 1 Laser Products

Application
● 40GBASE-SR4 40G Ethernet
● 40G-IB-QDR /20G-IB-DDR / 10G-IB-SDR InfniBand
● Breakout to 4 x 10GBASE-SR
● Proprietary interconnections

Standards
● Compliant with QSFP+ MSA
● Compliant to IEEE 802.3ba
● Compliant to SFF-8436
● Compliant with RoHS-6
