Single 1x9 Wavelength Selective Switch (WSS) Module

Single 1x9 WSS module is designed for colorless, directionless, flexgrid ROADM applications. This module contains one common port and nine Mux/Demux ports, supports dynamically routing and attenuating single/multiple chanel to any port. The functionality of the WSS is optically bi-directional.

Features
LCOS based WSS for C-Band
Supports Mux and Demux Functions
Default 6.25GHz Slice Mode, Supports 3.125GHz, 6.25GHz, and 12.5GHz Slice Modes
Channel Bandwidth Range: 37.5GHz ~ 500GHz
Operating Frequency Range: 191.15THz ~ 196.075THz
Module Dimensions (L x W x H): 167mm x 110mm x 20mm
AM1 ~ AM9 and OUT Optical Interfaces Use LC/UPC, Length: 620 ± 30mm

Applications
Colorless, Directionless, Flexgrid ROADM
Single/Multiple Channel Routing, Attenuating

Quality Certifications

Quality Testing

Parameter Testing

PDL Testing

Power Testing

WDL Testing

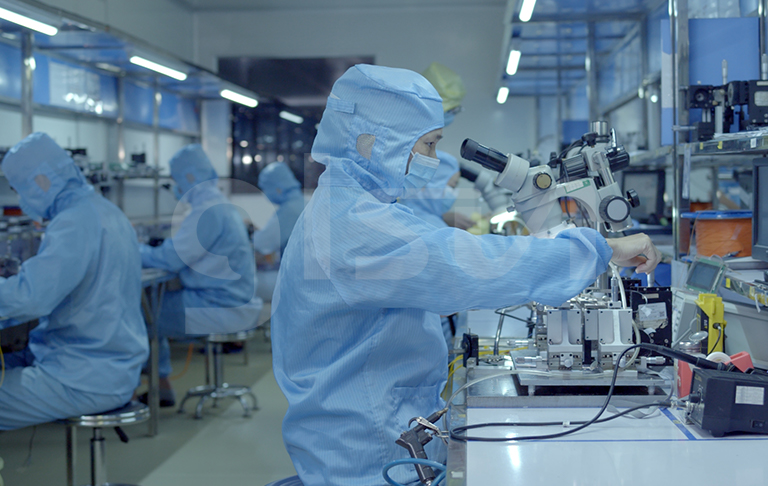

Production Workshop
