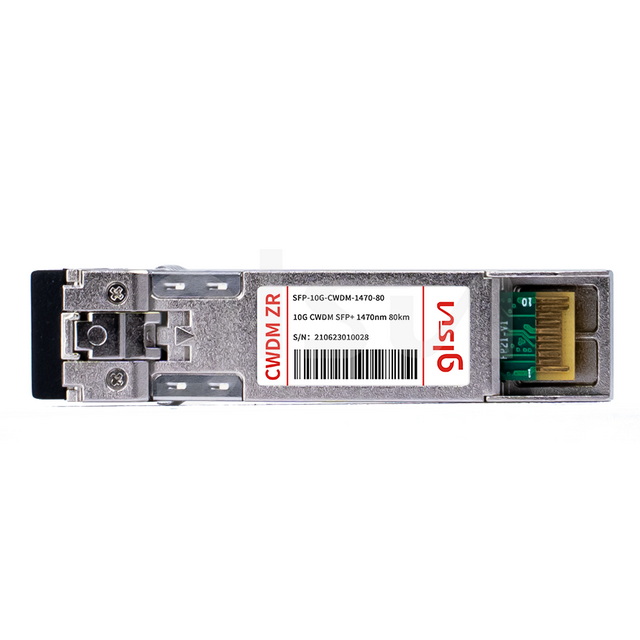

SFP-10G-CWDM-1470-80 Cisco Compatible, 10GBASE-CWDM SFP+ 1470nm 80km DOM LC SMF Fiber Optical Transceiver Module

#141055
20 Sold 1 Reviews 0 Questions
180.00 249.00
PN: SFP-10G-CWDM-1470-80-T02
Compatible
Cisco
Transceiver Type
1470nm
1490nm
1510nm
1530nm
1550nm
1570nm
1590nm
1610nm
Distance
40km
80km
Ship From China
168 in stock
Add to Cart
SFP-10G-CWDM-1470-80 Optical Transceiver Module
SFP-10G-CWDM-1470-80 Cisco Compatible, 10GBASE-CWDM SFP+ 1470nm 80km DOM LC SMF Fiber Optical Transceiver Module #141055
20 Sold 1 Reviews 0 Questions
Add to Cart
180.00 249.00

GLsun's SFP-10G-CWDM-1470-80 CWDM 10Gbps SFP+ transceivers are designed to transmit and receive optical data over single mode optical fiber for link length 80km. This 10g cwdm sfp+ transceiver module consists of two sections: The transmitter section incorporates a CWDM EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Compatible Cisco Form Factor SFP+
Max Data Rate 10.3125Gbps Wavelength 1470nm
Max Cable Distance 80km Connector Duplex LC
Transmitter Type 1470nm EML Extinction Ratio 9dB
Media SMF Power Consumption <1.5W
Power Supply Voltage 3.3V Operating Case Temperature 0°C to +70°C (Commercial); -40°C to +85°C (Industrial)
Quality Certifications
Product Spotlights
Quality Testing

Wavelength Testing

Bit Error Rate Testing

Performance Testing

Final Testing

Production Workshop

Download

sfp-10g-cwdm-1470nm-80km-optical-module-141055.pdf
