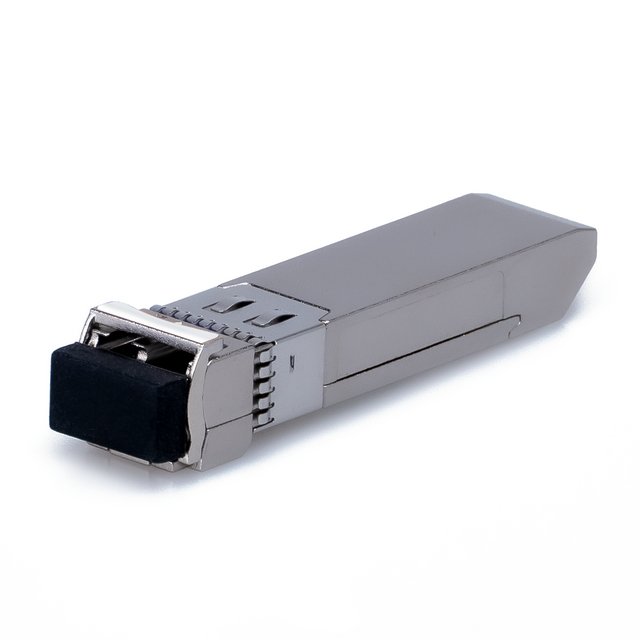

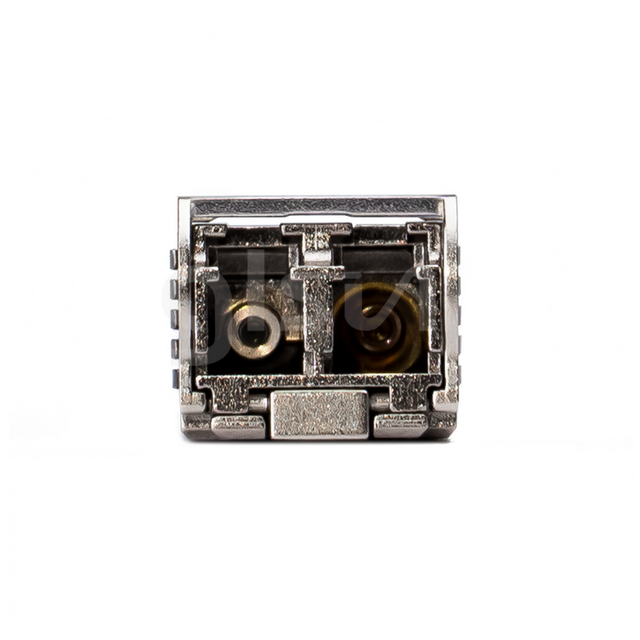

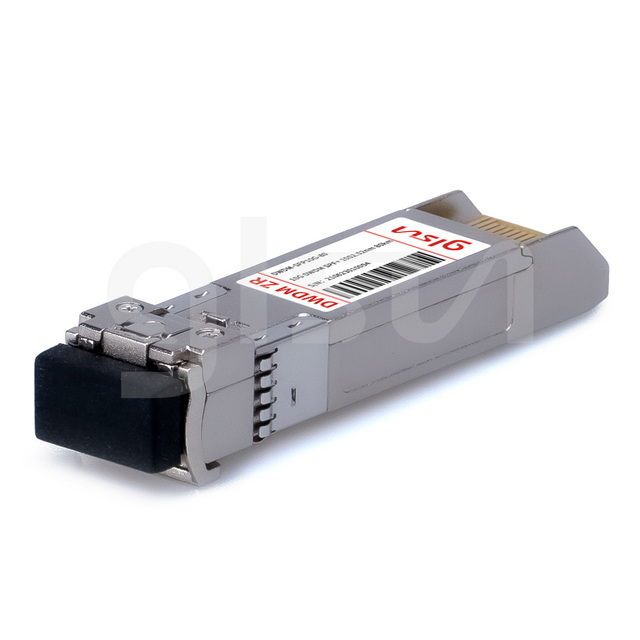

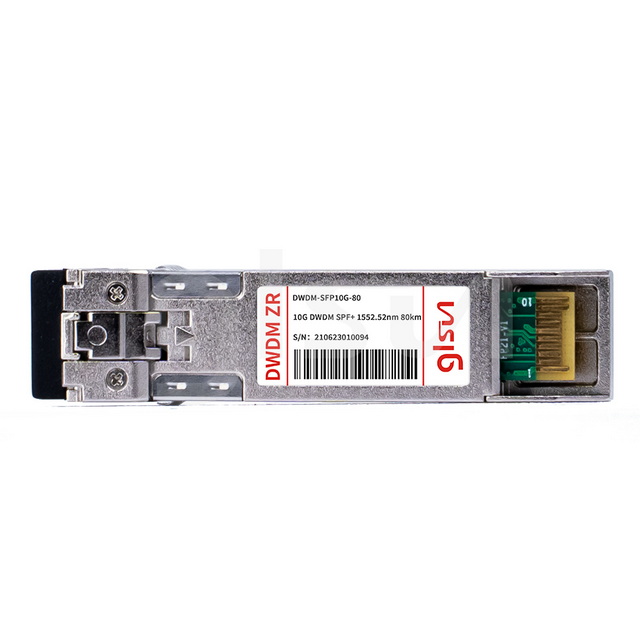

Cisco Compatible, DWDM-SFP10G-52.52 Optical Transceiver Module 10G DWDM SFP+ C31 1552.52nm 80km DOM LC SMF
- Compatible
- Cisco
- Wavelength
- C17
- C18
- C19
- C20
- C21
- C22
- C23
- C24
- C25
- C26
- C27
- C28
- C29
- C30
- C31
- C32
- C33
- C34
- C35
- C36
- C37
- C38
- C39
- C40
- C41
- C42
- C43
- C44
- C45
- C46
- C47
- C48
- C49
- C50
- C51
- C52
- C53
- C54
- C55
- C56
- C57
- C58
- C59
- C60
- C61
GLsun's DWDM-SFP10G-80-C31 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 80km over SingleMode fiber. They are compliant with SFF- 8431,SFF-8432 and ITU-T G.698.1. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication.
This transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
| Compatible | Cisco | Form Factor | SFP+ | ||
| Max Data Rate | 10.3125Gbps | Wavelength | 1552.52nm | ||
| Max Cable Distance | 80km | Connector | Duplex LC | ||
| Transmitter Type | 1552.52nm EML | Extinction Ratio | 8.2dB | ||
| Media | SMF | Power Consumption | <1.5W | ||
| Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70°C (Commercial); -40°C to +85°C (Industrial) |
Wavelength Testing
Bit Error Rate Testing
Performance Testing
Final Testing
