WSS Module Technology for Advanced ROADM

April 02,2025

Reconfigurable Optical Add-Drop Multiplexers (ROADMs) have become a cornerstone of modern optical communication networks, enabling dynamic wavelength management and flexible signal routing. At the heart of advanced ROADM systems lies the Wavelength Selective Switch (WSS) module, a critical technology that facilitates the selective switching of optical wavelengths with high precision and efficiency. This article explores the principles, advancements, and applications of WSS module technology in enhancing ROADM performance, addressing the growing demands of high-capacity, agile optical networks.

Principles of WSS Technology
A Wavelength Selective Switch is an optical device capable of independently routing individual wavelengths from an input port to one or more output ports. Unlike traditional optical switches that operate on fixed paths, WSS modules offer programmable control over wavelength al, making them ideal for dynamic network environments.

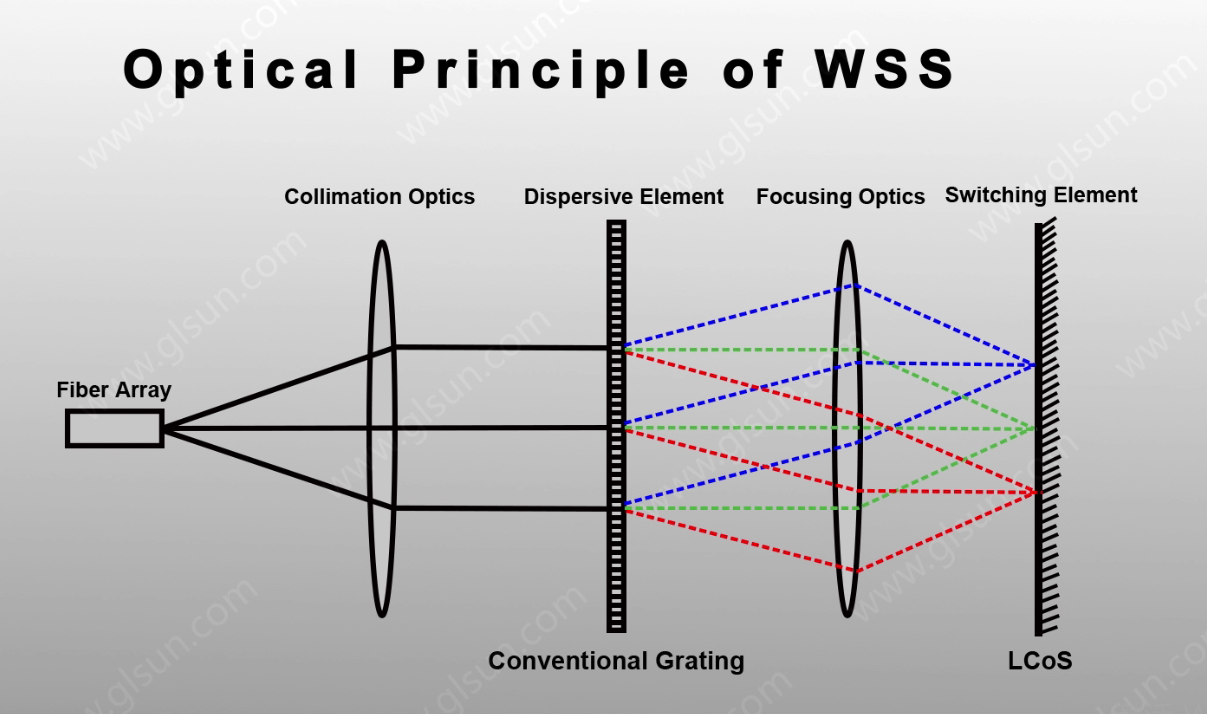

Core Components of WSS Optical Design
The optical design of a WSS can be broken down into several essential elements, each contributing to the system's ability to separate, manipulate, and recombine wavelengths:
Input/Output Ports: Typically implemented using fiber collimators, these ports couple light into and out of the WSS. A single input fiber carries the multiplexed signal, while multiple output fibers (e.g., 1xN configuration) receive the switched wavelengths. Collimators use gradient-index (GRIN) lenses or aspheric lenses to convert the diverging light from fibers into a collimated beam, minimizing loss and ensuring alignment.
Dispersion Element: A diffraction grating is the most common choice, dispersing the incoming broadband light into its spectral components based on wavelength. Transmission gratings are often preferred in modern designs for lower polarization-dependent loss (PDL), though reflection gratings are used in compact systems. The grating’s line density (e.g., 600–1200 lines/mm) and blaze angle determine the angular dispersion and wavelength resolution, typically aligned with ITU-T grid spacings (e.g., 50 GHz or 100 GHz).
Focusing Optics: Lenses or curved mirrors focus the dispersed wavelengths onto the switching plane. A cylindrical lens may be used to shape the beam into a line focus, ensuring each wavelength occupies a distinct spatial position. High-quality optics with low aberrations (e.g., spherical or chromatic) are critical to maintain signal integrity across the wavelength range (typically 1525–1575 nm for C-band).
Switching Mechanism: The heart of the WSS, this component directs individual wavelengths to specific output ports. Common technologies include:
MEMS Mirrors: Arrays of tiltable micromirrors (one per wavelength) reflect light to desired ports. Each mirror’s angle is controlled electrostatically, offering discrete switching.
LCoS Arrays: Liquid Crystal on Silicon panels modulate the phase of light, creating programmable diffraction patterns to steer wavelengths. This enables continuous tuning and flexible grid support.
DLP: Digital Light Processing uses micromirror arrays with binary tilt states, though less common in high-end WSS due to limited flexibility.
The switching plane’s spatial resolution dictates the number of addressable wavelengths and port count (e.g., 1x9, 1x20).
Recombining Optics: After switching, the wavelengths are refocused and coupled into the output fibers using a symmetric arrangement of lenses or mirrors. This ensures minimal crosstalk and efficient light collection.

Evolution of WSS Technology
Early WSS modules were based on simple 1x2 or 2x2 configurations with limited port counts and fixed wavelength spacing. However, advancements in optical and electronic engineering have significantly enhanced their capabilities:
MEMS-Based WSS: Utilizes tiny mirrors to redirect wavelengths. MEMS offers low insertion loss (<2 dB), fast switching times (<10 ms), and high reliability, though it is constrained by discrete port limitations.
LCoS-Based WSS: Employs liquid crystal arrays to modulate light phase, enabling continuous wavelength tuning and flexible grid support. LCoS excels in high-port-count applications (e.g., 1x20 or higher) and colorless, directionless, contentionless (CDC) ROADM designs.
Higher Port Counts: Modern WSS modules support configurations like 1x32 or 1x64, accommodating the increasing complexity of metro and long-haul networks.
Flexible Grid: By moving beyond fixed ITU grids, WSS modules now allow dynamic bandwidth al (e.g., 12.5 GHz increments), optimizing spectrum usage for coherent modulation formats like 400G or 800G.
These advancements have reduced crosstalk, improved optical signal-to-noise ratio (OSNR), and lowered power consumption, making WSS modules more adaptable to next-generation network requirements.

Role in Advanced ROADM Systems
ROADMs equipped with advanced WSS modules provide unparalleled flexibility and scalability. Key features enabled by WSS technology include:
Colorless Operation: Wavelengths can be assigned to any port without fixed color restrictions, simplifying network planning.
Directionless Operation: Signals can be routed to any direction, eliminating the need for dedicated east-west fiber pairs.
Contentionless Operation: Multiple instances of the same wavelength can coexist without interference, critical for high-density deployments.
Dynamic Bandwidth Al: Flexible grid WSS modules support on-the-fly adjustment of channel widths, accommodating varying data rates and traffic patterns.In a typical CDC ROADM node, WSS modules are deployed at both the add/drop and line sides. For example, a 1x9 WSS on the line side might connect to multiple directions, while a 1x20 WSS on the add/drop side manages local traffic. This architecture supports rapid reconfiguration, fault recovery, and capacity upgrades without physical rewiring.

Technical Challenges and Solutions
Despite their advantages, WSS modules face challenges that ongoing research aims to address:
Insertion Loss: Higher port counts increase loss, mitigated by improved optics and amplification strategies.
Switching Speed: While MEMS offers millisecond-scale switching, emerging photonic integrated circuits (PICs) promise microsecond responses.
Cost: LCoS and high-port-count WSS modules remain expensive, though economies of scale and hybrid designs (e.g., combining MEMS and LCoS) are reducing costs.
Polarization Dependence: Advanced WSS designs incorporate polarization diversity to minimize signal degradation.

Applications and Future Outlook
WSS-enabled ROADMs are deployed across various domains:
Telecom Networks: Supporting 5G backhaul, cloud connectivity, and ultra-long-haul transmission.
Data Centers: Enabling optical interconnects with dynamic wavelength provisioning.
Research: Facilitating testbeds for quantum communication and advanced modulation formats.
Looking ahead, WSS technology is poised for further innovation. Integration with software-defined networking (SDN) allows real-time optimization of optical paths, while developments in silicon photonics may shrink WSS modules into compact, low-power units. Additionally, the push toward terabit-per-second systems will drive demand for WSS modules with wider wavelength ranges (e.g., C+L band) and higher resolution.

Conclusion
WSS module technology is a linchpin of advanced ROADM systems, delivering the flexibility, efficiency, and scalability required for modern optical networks. Through continuous improvements in switching mechanisms, port density, and spectral management, WSS modules are unlocking new possibilities in telecommunications and beyond. As bandwidth demands soar and network architectures evolve, the role of WSS technology will only grow, cementing its status as a foundational element of the optical future.
